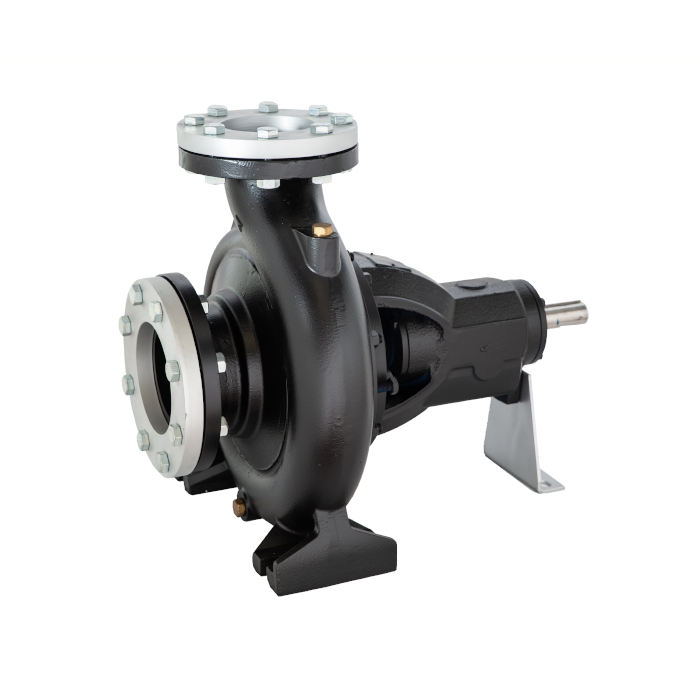

Normalized centrifugal pumps with elastic coupling and standard motor
The pumps with shaft of the series “CM” are manufactured according to DIN 24255 (UNI EN 733) standards.
They have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.

  • Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 90 °C for other use, while the ambient temperature must not be higher than 40 °C
  • Flow rates up to 1800 m3/h.
  • Heads up to 100 m.

TECHNICAL FEATURES (standard version)

  • Pump casing: Cast iron
  • Back cover: Cast iron
  • Impeller: Cast iron
  • Gland Nodular: Cast iron
  • Wearing ring*: Cast bronze
  • Shaft: Chrome steel
  • Shaft sleeve*: Chrome steel
  • Bearing housing: Cast iron
  • Bearing cover: Cast iron

*Wearing rings and shaft sleeves are upon request.
