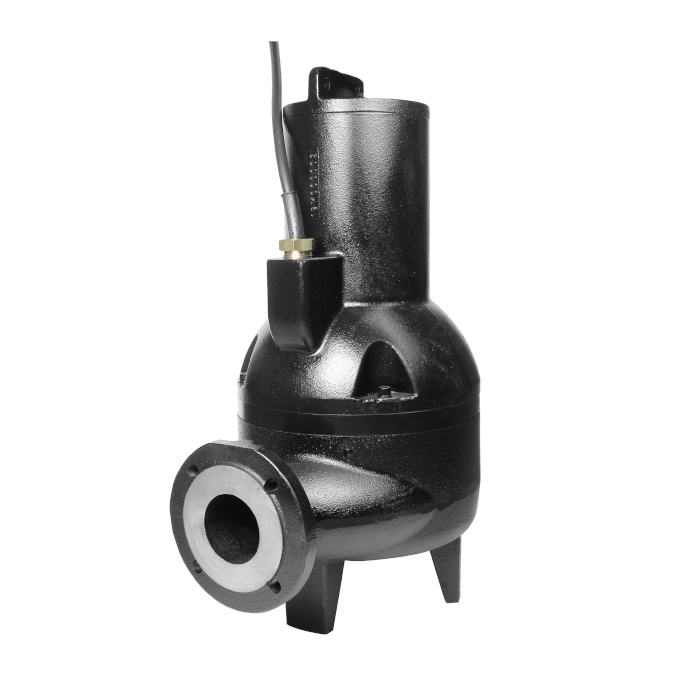

VS

Submersible for wastewater pumps

The submersible electric wastewater pumps with non-clog vortex impeller of the series VS have been designed to pump waste water, chemically not aggressive for the pumps’ material, also with suspended solids with a max. Ø65mm for VS 65, Ø78mm for VS80 and Ø88mm for VS100.

Temperature not higher than 35 °C (CEI EN 60335-2-41).

MAGGIORI INFORMAZIONI CATALOG INSTRUCTION MANUAL

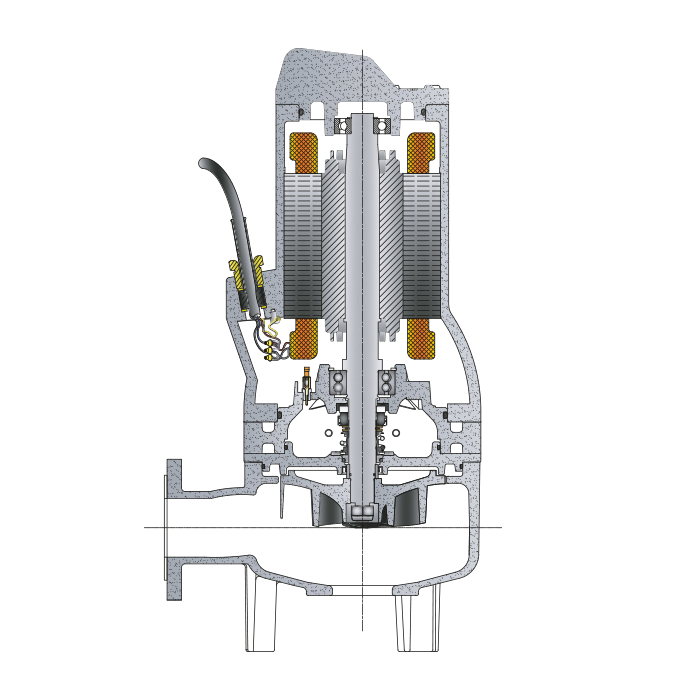

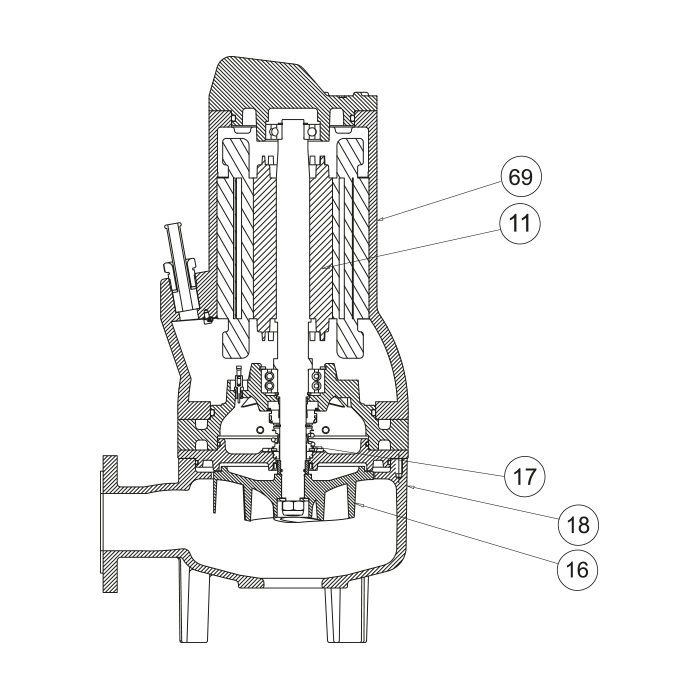

TECHNICAL FEATURES

  • Motor body: cast iron G20 with anti-corrosive coating
  • Pump body: cast iron G20 with anti-corrosive coating
  • Impeller: vortex impeller in cast iron G25 with anti-corrosive coating
  • Pump shaft: stainless steel Aisi 420
  • Mechanical seal pump side: silicon carbide-silicon carbide;
  • Mechanical seal motor side: alumina – carbon
  • Threaded counter flange: galvanized steel complete with EPDM gaskets
  • Feeding cable: 10 m in Neoprene H07RN-F

MOTOR

  • Two or four poles induction rewindable motor with protection IP 68, class F insulation.
  • Compulsory three-phase feeding protection with DOL starting is to be supplied by the user.
  • Continuous duty within the range areas  and if completely submerged.

ON REQUEST

  • Seal  probe to detect water ingress into oil chamber.
  • Electric power cable for star-delta starting.
  • Coupling foot and rapid guide device.
